The Pure Bicycle Company are continuously working to push the boundaries of performance and design. The V6 Aluminum BMX frames are a combination of modern technology combined with a passion for BMX racing. The frames are made from the highest quality 6061 series hydro formed aluminum. Hydro formed rear chain-stays designed to reduce the power loss during pedaling to increase performance. Larger tubing adds stiffness to the rear end of the frame resulting in better gate starts and better acceleration. All tubing used to create the frame has been chosen to maximize power transfer so that everything you can put through the pedals goes onto the track without losing any through the frame. Hydro Formed tubing reduces flex in the frame from when you are pushing and pulling on the bars making for a more responsive ride and quicker response in the turns. The short seat tube allows you to run the seat as low as possible without any tyre buzz during manuals. The included disc adaptors means the frame is disc ready right out the box. Extremely balanced geometries keep the frame stable when jumping making for more confident riding, allowing the racer to really push their limits.
- CNC Machined head tube, bottom bracket shell and 3D dropouts
Hydro Formed 6000 Series Tubing - Tubing Designed for Maximum Power Transfer
- Stainless Steel drop out inserts for increased drop out life
- Extremely balanced geometries
- 10mm Dropouts
- Responsive front end
- Short Seat Tube
- 3M Vinyl Graphics
- Removable V-Brake mounts
- Disc Brake Adaptor Included
- Chain Tensioner/Axle Adjustor Included
Junior
- Top Tube: 18.71”/475.2mm
- Rear End: 12.5”/317.5mm
- BB Height: 11.04”/280.39mm
- Rider Area: 19.25”
- Head Angle: 72°
- Set Tube angle 71°
- Post Size/Clamp Size: 22.2mm/25.4mm
- Headset: 1 1/8 Integrated
- Weight: 1.26kg

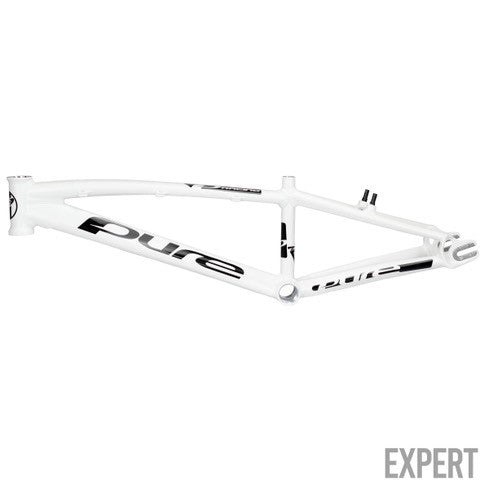

Expert
- Top Tube: 19.33”/491mm
- Rear End: 12.5”/317.5mm
- BB Height: 11.04”/280.39mm
- Rider Area: 19.7”
- Head Angle: 72°
- Set Tube angle 71°
- Post Size/Clamp Size: 22.2mm/25.4mm
- Headset: 1 1/8 Integrated
- Weight: 1.28kg
Expert XL
- Top Tube: 20.24”/514mm
- Rear End: 12.99”/330mm
- BB Height: 11.04”/280.39mm
- Rider Area: 20.6”
- Head Angle: 72°
- Set Tube angle 71°
- Post Size/Clamp Size: 27.2mm/31.8mm
- Headset: 1/8 Integrated
- Weight: 1.42kg
Pro
- Top Tube: 20.91”/531mm
- Rear End: 13.43”/341.2mm
- BB Height: 11.63”/295.4mm
- Rider Area: 21.4”
- Head Angle 74°
- Set Tube angle 71°
- Post Size/Clamp Size: 27.2mm/31.8mm
- Headset: 1.5” Tapered
- Weight: 1.72kg

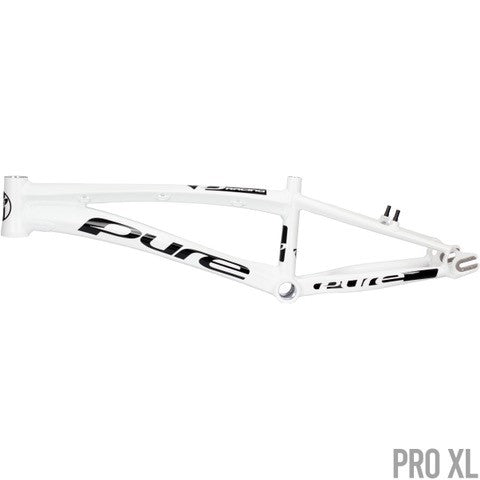

Pro XL
- Top Tube: 21.54”/547mm
- Rear End: 13.78”/350mm
- BB Height:11.63”/280.39mm
- Rider Area: 21.75”
- Head Angle 74°
- Set Tube angle 71°
- Post Size/Clamp Size: 27.2mm/31.8mm
- Headset: 1.5” Tapered
- Weight: 1.76kg
Pro XXL
- Top Tube: 22.17”/563mm
- Rear End: 13.78”/350mm
- BB Height: 11.63”/280.39mm
- Rider Area: 22.5 inches
- Head Angle 74°
- Set Tube angle 71°
- Post Size/Clamp Size: 27.2mm/31.8mm
- Headset: 1.5” Tapered
- Weight: 1.78kg
Pro XXXL
- Top Tube: 23.05”/585mm
- Rear End: 14.37”/365mm
- BB Height: 11.63”/280.39mm
- Rider Area: 23.0”
- Head Angle 74°
- Set Tube angle 71°
- Post Size/Clamp Size: 27.2mm/31.8mm
- Headset: 1.5” Tapered
- Weight: 1.82kg
Pro XL
- Top Tube: 22.0”/559mm
- Rear End: 14.76”/375mm
- BB Height: 11.65”/295mm
- Rider Area: 22.75”
- Head Angle 74°
- Set Tube angle 71°
- Post Size/Clamp Size: 27.2mm/31.8mm
- Headset: 1.5” Tapered
- Weight: 1.84kg
Pro XXL
- Top Tube: 23.0”/584mm
- Rear End: 14.76”/375mm
- BB Height: 11.65”/295mm
- Rider Area: 23.6”
- Head Angle 74°
- Set Tube angle 71°
- Post Size/Clamp Size: 27.2mm/31.8mm
- Headset: 1.5” Tapered
- Weight: 1.88kg
All frame weights stated based on raw frames
