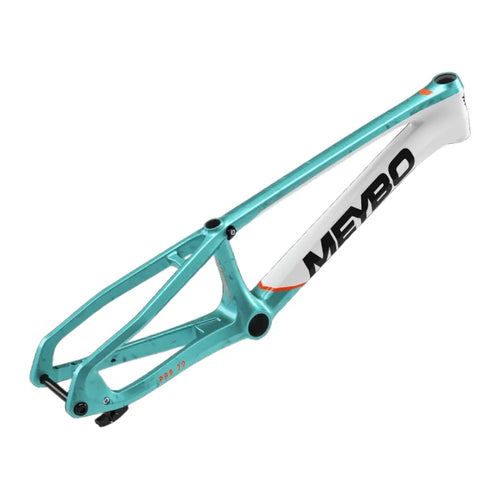

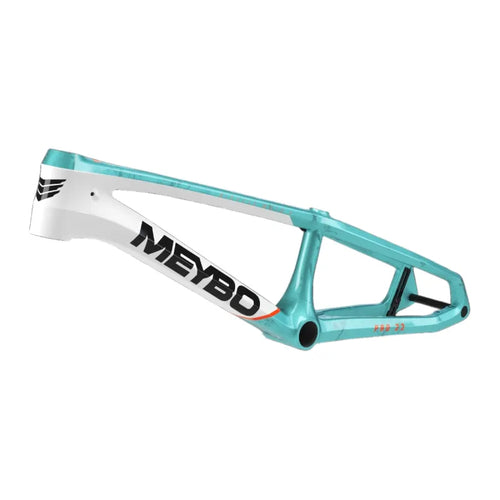

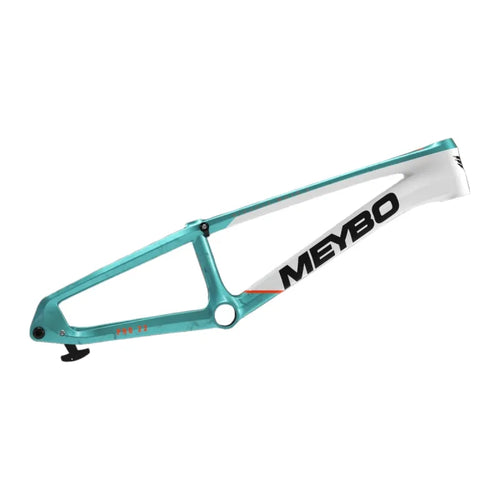

The Meybo HSX Carbon is the frame the world's best BMX racers actually ride. Niek Kimmann won Olympic gold on it. The Dutch national team trains on it. When Meybo calls this their flagship, they mean it literally — this is the frame that shapes their entire product line around.
What makes it genuinely different from every other carbon frame on the market is the fixed 15mm rear dropout. Every other disc race frame uses adjustable dropouts — you slide the wheel forward or backward to tension the chain. The HSX uses a fixed position with an integrated chain tensioner instead. That sounds like a small thing. It isn't. It means your chainstay length is identical every single time you remove and reinstall the wheel, your geometry never shifts, and your wheel goes back in straight in seconds. At a gate start, that consistency is worth more than people realise.
UD carbon formed tubes deliver 30% more torsional stiffness than the previous HSX generation — you feel that stiffness most out of the gate and through corners, where energy loss from flex costs you fractions of a second that add up over a moto. The BB shell steps up from BB86 to BB386 EVO for Pro 21.5" and above, widening the crank interface as rider weight and power output increases. Internal brake hose routing through the chainstay keeps everything aerodynamic and protected. Compatible with standard 20" and OS (oversize) wheels.
Specifications
- Construction: UD carbon formed tubes — 30% stiffer than previous generation
- Head Tube: Tapered 1.5"
- Bottom Bracket: BB86 (Expert, Expert XL, Pro 21") | BB386 EVO (Pro 21.5" and above)
- Rear Dropouts: Fixed 15mm — chainstay length locked regardless of gearing
- Rear Axle: 7005 alloy CNC machined 15mm
- Brake Mount: Flat mount disc
- Brake Routing: Internal hose through chainstay
- Seat Clamp: Integrated
- Wheel Compatibility: Standard 20" and OS wheels
- Sizes: Expert (19.6" TT), Expert XL (20.6" TT), Pro (21" TT), Pro XL (21.5" TT), Pro XXL (22" TT), Pro XXXL (22.5" TT), Pro XXXXL (23" TT), Pro Cruiser (22" TT)
Who it's for: Expert through Pro class riders competing at regional, national, or UCI level who want the same frame as the world's fastest racers. Carbon frames must be installed by a professional mechanic. Stop riding immediately after any crash or impact — carbon can conceal internal damage. Maximum seatpost insertion: 150mm. Fork sold separately.
Frequently Asked Questions
What size HSX Carbon should I order?
Order the size that matches your USA BMX racing class. Expert (19.6" TT) fits riders roughly 4'6"–5'0". Expert XL (20.6" TT) fits 4'10"–5'4". Pro (21" TT) suits 5'2"–5'8". Pro XL (21.5" TT) and above are for taller adult riders. When in doubt, match your class first — it's more important than matching height. Call us before ordering if you're between sizes.
What fork pairs with the HSX Carbon?
The SD Carbon V2 Pro Tapered fork is the factory-matched fork — it's what ships on the Patron complete bike and what Meybo's pro team runs. It comes in 24" Cruiser and 20" versions in matching colourways. The Avian Versus Tapered Carbon and Pride Apex Tapered are also compatible. All require a tapered 1-1/8" to 1.5" headset (Expert sizes use a straight 1-1/8" headset instead — see spec table).
What headset do I need?
Expert and Expert XL: Avian or Sinz 1-1/8" standard integrated headset.
Pro 21" through Pro XXXXL and Cruiser: Avian or Sinz tapered 1-1/8" to 1.5" integrated headset.
What bottom bracket does it use?
BB86 press-fit for Expert, Expert XL, and Pro 21". BB386 EVO for Pro 21.5" and above. This affects which cranks are compatible — confirm your crank's BB standard before ordering.
Does the frame come with a rear axle?
Yes. The HSX Carbon includes a 7005 alloy CNC-machined 15mm rear axle. It does not include a fork, headset, or seatpost.
Can I use V-brakes?
No. The HSX Carbon is flat mount disc brake only. It is not compatible with V-brakes or caliper brakes.
What disc rotor size does it take?
The HSX Carbon uses a 140mm flat mount disc rotor. Using a 120mm rotor will not centre the caliper correctly.
Does carbon fibre crack invisibly?
Yes, and this is serious. Carbon can sustain internal structural damage from an impact that looks fine on the surface. If you crash or the frame takes any significant impact, stop riding and have it professionally inspected before continuing. Never continue riding a carbon frame after a crash without inspection — failure can occur without warning.
Who should install it?
A professional bicycle mechanic. Carbon frames require specific torque values at every fastener. Overtightening carbon — especially at the headset, seatpost, and fork — can cause invisible damage that leads to catastrophic failure.
Is it legal for USA BMX racing?
Yes. The HSX Carbon meets and exceeds CPSC and EN 14781 standards and is legal for all USA BMX and BMX Canada sanctioned events.
BMX Race Frame Size Guide
| Frame Size | Top Tube | Rider Height | Approx. Age |
|---|---|---|---|
| Micro / Rascal | 15–16" | Under 3'8" | 3–5 yrs |
| Mini | 17–17.5" | 3'8"–4'2" | 5–7 yrs |
| Junior | 18–18.7" | 4'2"–4'8" | 7–9 yrs |
| Expert | 19–19.6" | 4'6"–5'0" | 9–12 yrs |
| Expert XL | 19.9–20.6" | 4'10"–5'4" | 11–14 yrs |
| Pro / Pro XL | 20.5–21.5" | 5'2"–5'10" | 13+ / adult |
| Pro XXL+ | 21.5–23" | 5'8" and above | Adult |
| Cruiser | 21–23" | Any height | 8+ (24" wheels) |
Size names (Expert, Pro, etc.) refer to fit — not skill level. A beginner can ride a Pro-size frame. When in doubt between two sizes, go with your USA BMX racing class first, rider height second. Questions? Call us — we size riders every day.
