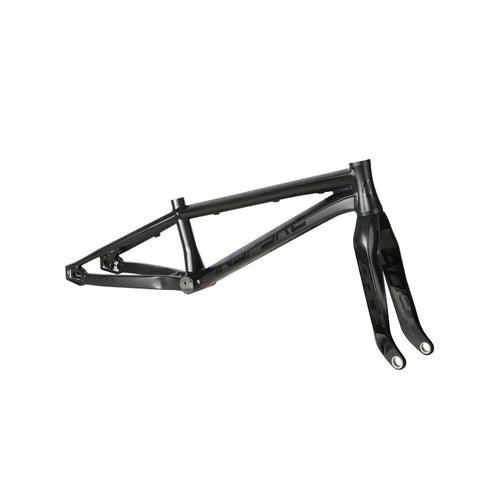

The Inspyre Concord V3 Alloy BMX Race Frame-Midnight Black is engineered for competitive track performance. Its hydroformed construction with strategically varied wall thickness minimizes weight while maximizing lateral and torsional rigidity translating to responsive acceleration and predictable cornering. The frame's size-specific geometry and precision welding ensure consistent power transfer and handling characteristics across multiple laps. Designed for riders demanding reliability and speed, this frame delivers the stiffness necessary for competitive gate drops and technical line execution.
Fork sold separately.
Image for reference only. Your order will be fulfilled with the selected size.
FEATURES
- AL66 aluminum frame
- Hydroformed multi-thickness tubing
- IS 45x45 headset compatibility
- Oversized rear stays
- SWELL V2 adjustable dropouts
- Post Mount disc brake compatible
- 15 mm thru-axle ready (sold separately)
- Fork sold separately
GEOMETRY
| CONCORDE V3 | RIDER AREA | DOWNTUBE | TOP TUBE | CHAINSTAYS | HEAD ANGLE | SEAT ANGLE | BB DROP | HEADTUBE LENGTH | FORK HEIGHT | FORK RAKE | WHEELBASE | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | |||
| mm | mm | Inches | mm | Inches (min / max) |
mm (min / max) |
° | ° | mm | ° | mm | mm | mm (min / max) |
|
|
Junior |
526 |
480 |
18,45 |
469 |
13.3 / 14.3 |
337 / 362 |
73° |
70° |
3,7 |
110 |
309 |
30 |
845 / 870 |
|
Expert |
544 |
505 |
19,50 |
495 |
13.3 / 14.3 |
337 / 362 |
73° |
71° |
16,4 |
110 |
309 |
30 |
883 / 908 |
|
Expert XL |
559 |
520 |
20,20 |
513 |
13.3 / 14.3 |
337 / 362 |
73° |
71° |
16,4 |
110 |
309 |
30 |
901 / 926 |
|
Pro |
563 |
528 |
20,65 |
525 |
14.2 / 15.2 |
360 / 385 |
74° |
72° |
45,4 |
115 |
309 |
30 |
940 / 965 |
|
Pro XL |
575 |
542 |
21,25 |
540 |
14.4 / 15.4 |
365 / 390 |
74° |
72° |
45,4 |
115 |
309 |
30 |
961 / 986 |
|
Pro 2XL |
585 |
553 |
21,75 |
552 |
14.7 / 15.7 |
373 / 398 |
74° |
72° |
45,4 |
115 |
309 |
30 |
981 / 1006 |
|
Pro 3XL |
596 |
566 |
22,25 |
565 |
15.3 / 16.3 |
389 / 414 |
74° |
72° |
45,4 |
115 |
309 |
30 |
1012 / 1037 |
|
Pro 4XL |
611 |
584 |
23,00 |
584 |
15.3 / 16.3 |
390 / 415 |
74° |
72° |
45,4 |
115 |
309 |
30 |
1033 / 1058 |
|
Pro XLCruiser |
617 |
572 |
21,85 |
555 |
15 / 16 |
380 / 405 |
73.5° |
70° |
5 |
115 |
359 |
30 |
971 / 996 |
| Pro XXL Cruiser | 639 | 593 | 22.85 | 580 |
15.3 / 16.3 |
390 / 415 |
73.5° |
70° |
5 |
115 |
359 |
30 |
971 / 996 |
SPECIFICATIONS
|
|
SEAT TUBE DIAMETER | SEAT CLAMP DIAMETER | BOTTOM BRACKET STYLE | SHIS | HEADTUBE STYLE | SPROCKET SIZE (MAX) | TIRE SIZE (MAX) | DISC BRAKE STYLE | AXLE | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| Junior |
22.2mm |
25.4mm |
Euro BSA - 1.375’’ BC 24T - 68MM |
IS42 | IS42 - 45° ø Bearing 41.8mm |
Integrated 1’’-1/8 110mm |
44T | 20 x 1-3/8 |
Disc only Post Mount 120MM |
10mm or 15mm |
1315g |
| Expert |
1345g |
|||||||||
| Expert XL |
1390g |
|||||||||
| Pro | 31.6mm | 34.9mm |
PRESS FIT BB86 |
IS42 | IS52 - 45° ø Upper bearing 41.8mm ø Lower bearing 51.9mm |
Integrated Tapered 115mm |
50T | 20 x 1,85 |
NC |
||
| Pro XL |
NC |
|||||||||
| Pro 2XL |
NC |
|||||||||
| Pro 3XL |
1550g |
|||||||||
| Pro 4XL |
1646g |
|||||||||
| Pro XL Cruiser | 44T | 24 x 1,75 |
1713g |
|||||||
| Pro 2XL Cruiser |
